SOAR

Using AlloyDB for PostgreSQL, I became interested in the underlying algorithm, based on ScaNN and recently extended with SOAR.

During indexing, a structure is built to organize vectors in space, so that search is performed only on a subset. Vectors are quantized and assigned to different partitions via SOAR. Let’s analyze this.

I have data in a vector database and a query $q$. I want to return the $k$ closest vectors to $q$. A linear scan gives exact results but is inefficient (intractable) due to the curse of dimensionality.
We approximate accuracy to gain efficiency, hence Approximate Nearest Neighbor.

Spill Tree

Data replication to reduce partitioning errors.

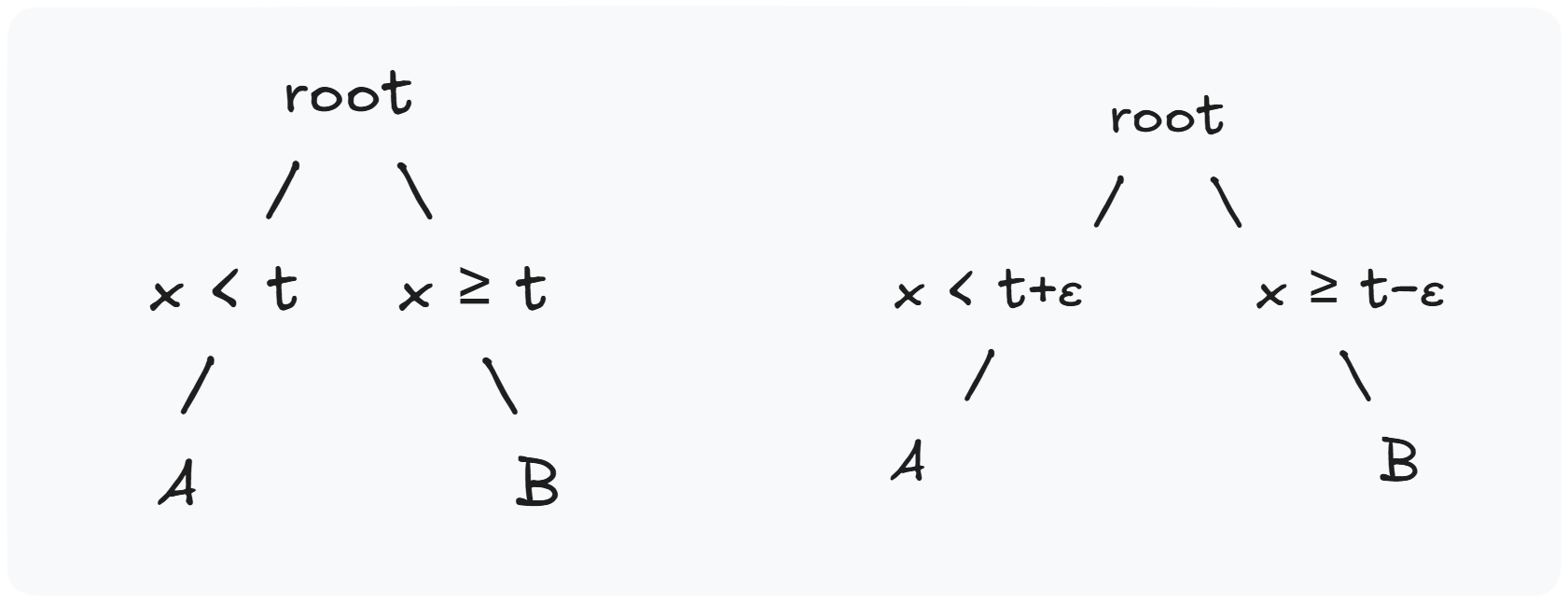

Here, $t$ is a separating hyperplane that divides the space into two regions. An overlap is introduced so that points near the boundary are replicated in both $A$ and $B$.

However, the complexity is exponential: if at each level of the tree a point $x$ falls into the overlap region, it is duplicated in both children and appears $2^h$ times.

Vector Quantization

We approximate vector values with centroids. This process returns two objects: codebook and assignment function.

$$C \in \mathbb{R}^{c\times d} \tag{1}$$

is a matrix with $c$ rows, each a vector in $\mathbb{R}^d$, so each row is a centroid.

$$\pi(v):\mathbb{R}^d \mapsto {1,\dots, c} \tag{2}$$

The assignment function ensures each vector is mapped to the nearest centroid. At query time, we compute the inner product between $q$ and all centroids, rank them by score, and retrieve points from those partitions.

This is not free: replacing $x$ with its centroid introduces error.

Residual

What we lose by replacing $x$ with its centroid.

If the residual is large and positive, the centroid underestimates the true score, and the correct partition may not be visited.
This happens when the residual $r$ is aligned with the query $q$, since the error is:

$$ \langle q, x \rangle - \langle q, C_{\pi(x)} \rangle = \langle q, r \rangle $$

A high $\langle q, r \rangle$ makes the point harder to retrieve.[^soar-paper]

Spilling with Orthogonality-Amplified Residuals

To avoid losing a point $x$ during search, we assign it to multiple partitions. But how do we choose the additional one?

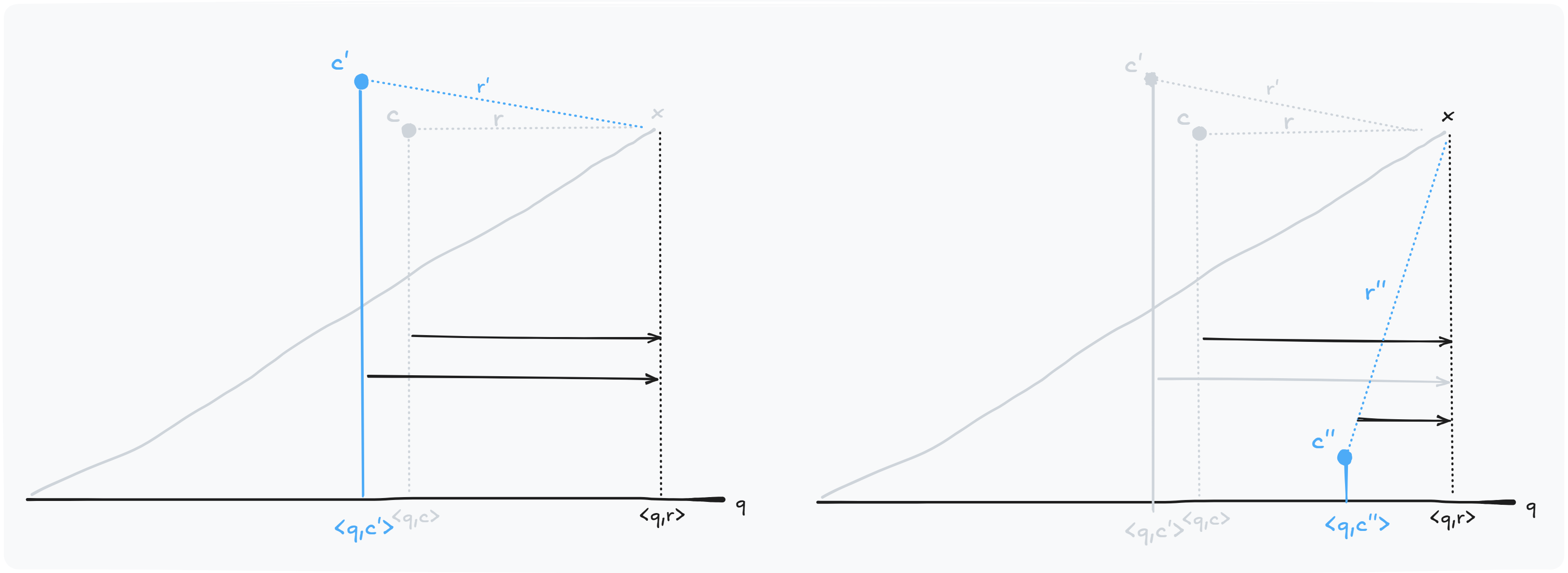

On the left, choosing $c’$ produces a new residual $r’$ similar to $r$.
On the right, choosing $c’’$ produces a residual $r’’$ almost orthogonal to $r$.

This is crucial: if two residuals have similar direction, they fail in the same cases. If they are orthogonal, at least one will give a good score.

Thus, we choose the centroid using a loss that minimizes quantization error while penalizing alignment between residuals:

$$ L(r’, r, Q) = \mathbb{E}_{q \in Q} \left[ w(\cos\theta), \langle q, r’ \rangle^2 \right] $$

where:

• $r = x - c$ is the residual of the first assignment
• $r’ = x - c’$ is the candidate residual
• $q$ is a query $\in Q$¹
• $\theta$ is the angle between $q$ and $r$
• $w(\cos\theta)$ gives more weight to cases where the original error is high, i.e. when $r$ is aligned with $q$

This loss explicitly reduces correlation between errors $\langle q, r \rangle$ and $\langle q, r’ \rangle$, which is the core idea of SOAR.[^soar-paper]

All these multiple assignments increase memory and indexing cost linearly with the number of copies per point. It is shown that a second assignment is already sufficient to cover most cases; additional ones bring marginal benefits relative to the cost.

Link to the official paper: https://arxiv.org/pdf/2404.00774
